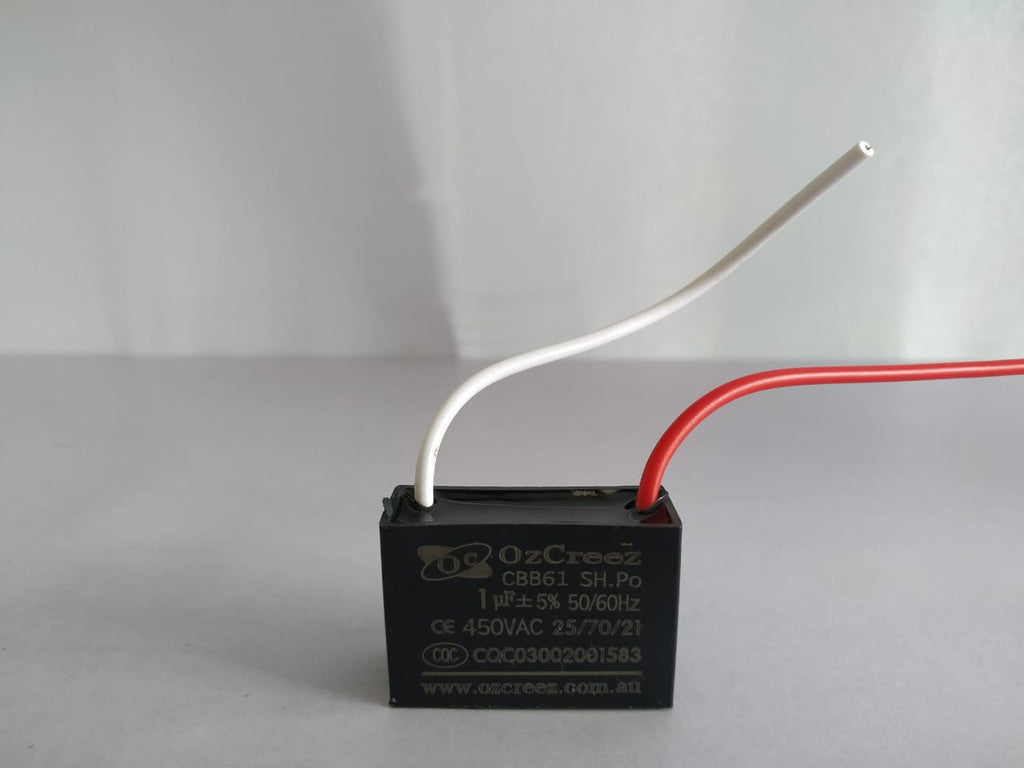

CBB61 450VAC
Features:
- Brand new, high quality and long service life
- Anti-explosion design, safe and reliable to use
-
Self-healing performance.
-
Resistant to impulse current.
Applications:
Suitable for Fan / Ceiling Fan / Exhaust Fan / Hood / Washing Machine etc.
Specifications:
Brand: OzCreezType: Starting/Run Capacitor
Model: CBB61
Tolerance: ±5%
Voltage: 450V AC
Frequency: 50Hz / 60Hz
Temperature/Climate Condition: -25°C/70°C/21
Package List:
1 × CBB61 Capacitor-1UF
MUST READ BEFORE PLACING ORDER:
- 1 or 2 pcs will be sent in envelop with stamps and it is not be trackable....
- Usually it is delivered smoothly but in some cases Australia Post may ask to pay extra shipping..
- You accept the risk of pay extra shipping by selecting free shipping option...
For peace of mind, we strongly suggest selecting parcel shipping option.. Order will be trackable...
Note: Do not worry if your existing capacitor cable colors do not match with this or other online products. The CBB61 (AC capacitor) cables can be connected in any order.
Rating |
Length × Wide × Height (mm) |
1 uF |
37 × 14 × 25 |
1.5 uF |
37 × 13.5 × 25 |
1.8 uF |
37 × 17 × 28 |
2.0 uF |
37 × 17 × 28 |
2.5 uF |
37 × 17 × 28.5 |
3.0 uF |
38 × 20 × 31 |
3.5 uF |
38 × 20 × 31 |
4.0 uF |
38 × 20 × 31.5 |
6.0 uF |
47 × 20 × 33 |
8.0 uF |
48 × 25 × 35 |
10 uF |
48 × 27 × 39 |
