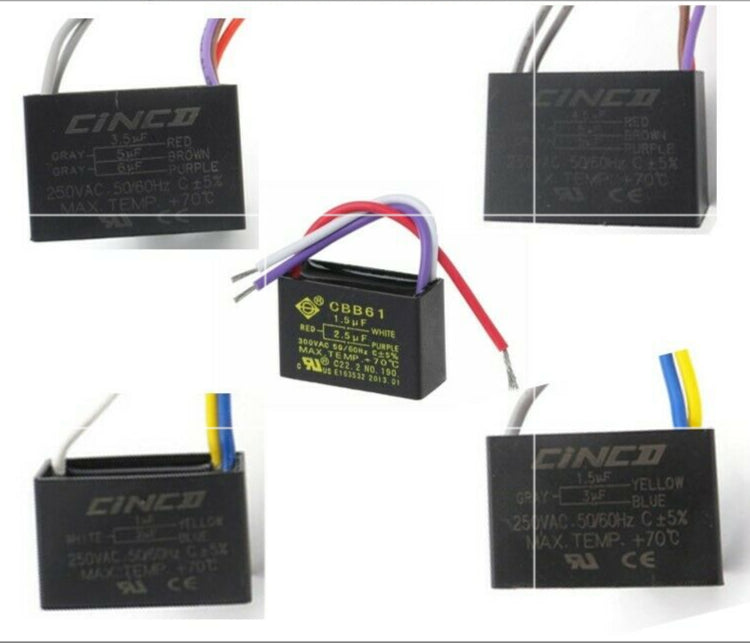

3 Wires and 5 Wires Motor Run Capacitor CBB61 250V AC Fan 3 Speed Electric Fanners / Fan Regulator
NB: Voltage rating printed on Capacitor is 450VAC. It can be used to replace any capacitor with voltage rating in range 250VAC to 450 VAC Capacitor.
Features:
- Small case, small dissipation factor, small in heterent temperature rise.
- Fan Capacitor High insulation resistance.
- Good self-healing characteristic.
- Very good pressure resistance function.
- Fan capacitor Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for AC fan, Ceiling Fan, centrifugal fan, cooling fan, axial fan, tube axial fan, centrifugal blower, fan guard, cross flow, industrial fans etc.

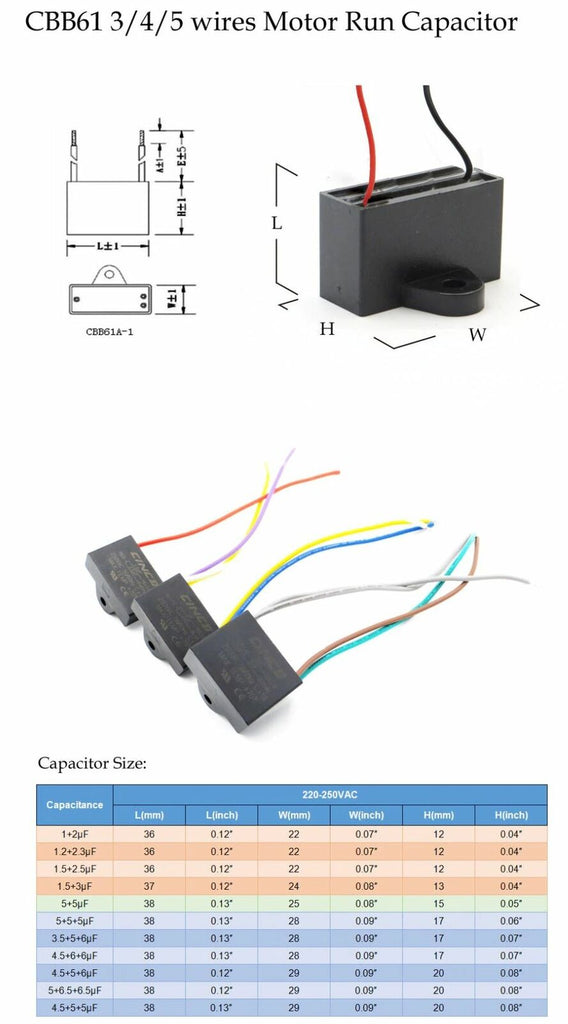

Specifications:
Rated capacitance |
Please see below |
Tolerance |
± 5% |
Rated voltage |
250VAC |
Rated frequency |
50/60Hz |
Maximum permissible voltage Vmax |
1.1 x VR (VR=Rated voltage) |
Maximum permissible current Imax |
1.3 x IR (IR=Rated current) |
AC test voltage terminal to terminal |
2 x VR, 2s (routine test) |
2 x VR, 60s (type test) |
Dissipation factor tan δ |
≤0.002 (50Hz) |
Climate types |
40/85/21, 25/70/21 |
Reference standards |
IEC 60252-1 |

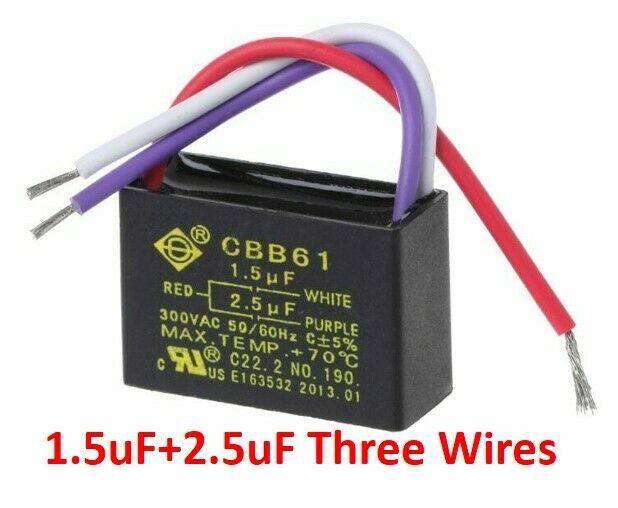

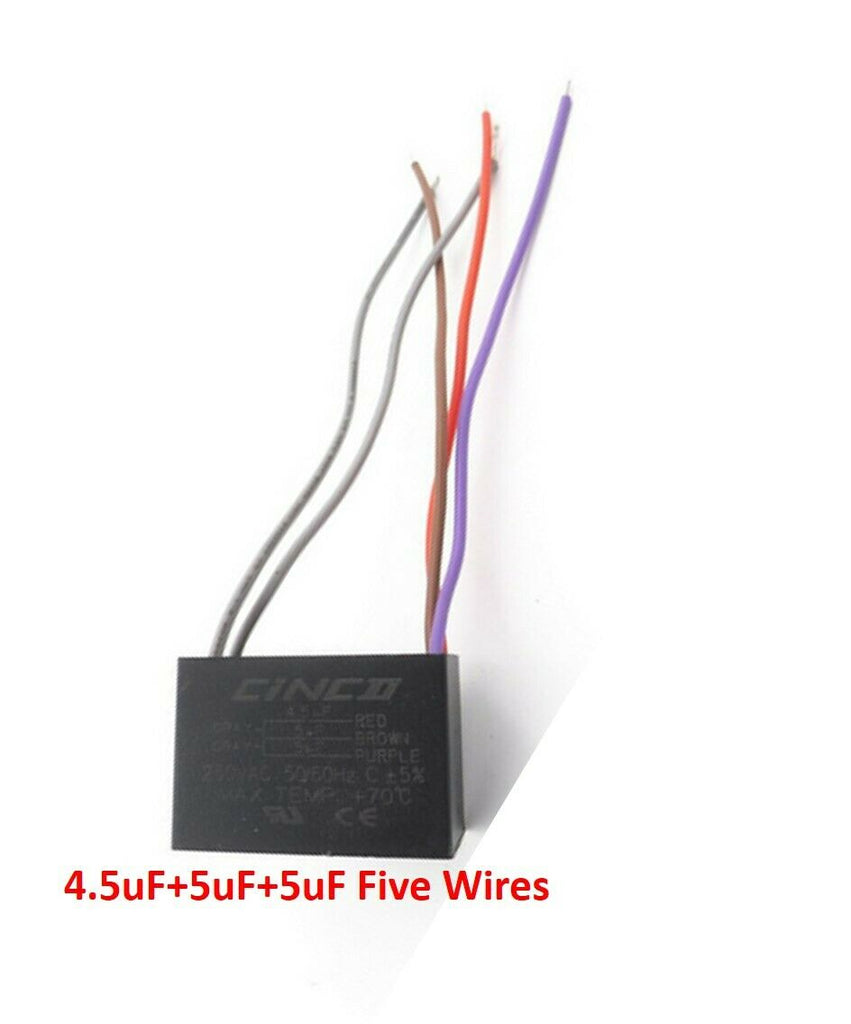

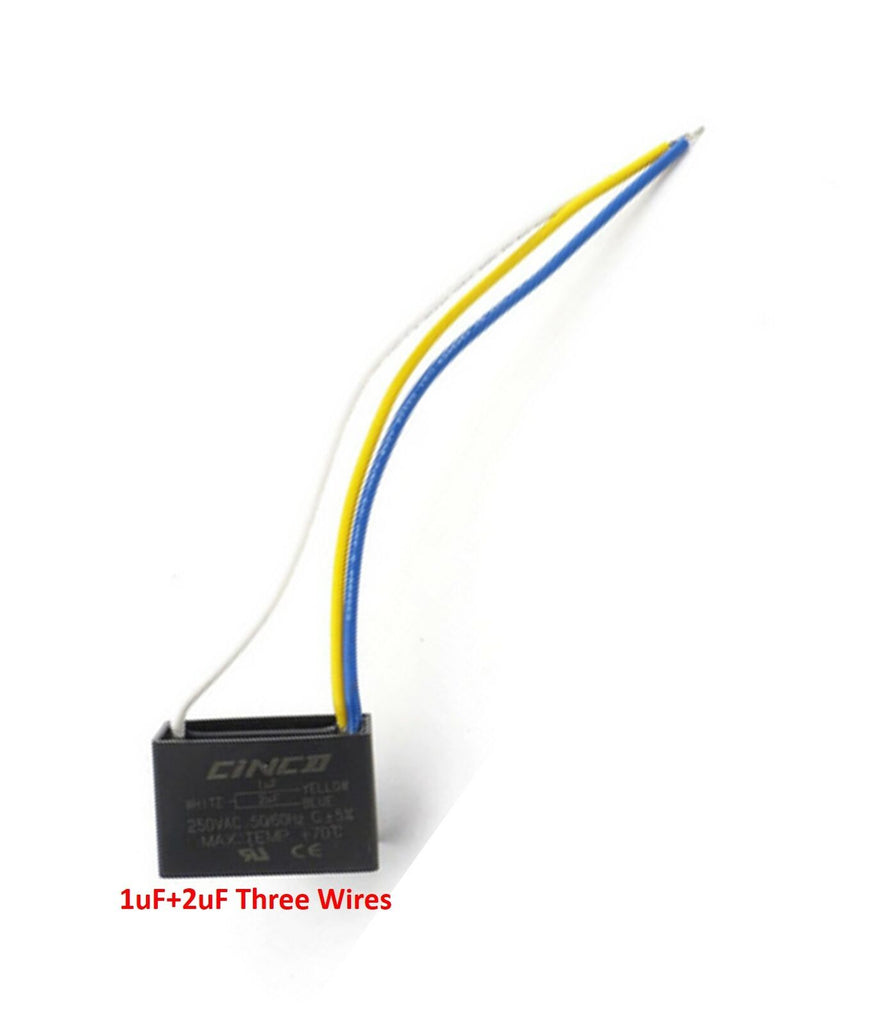

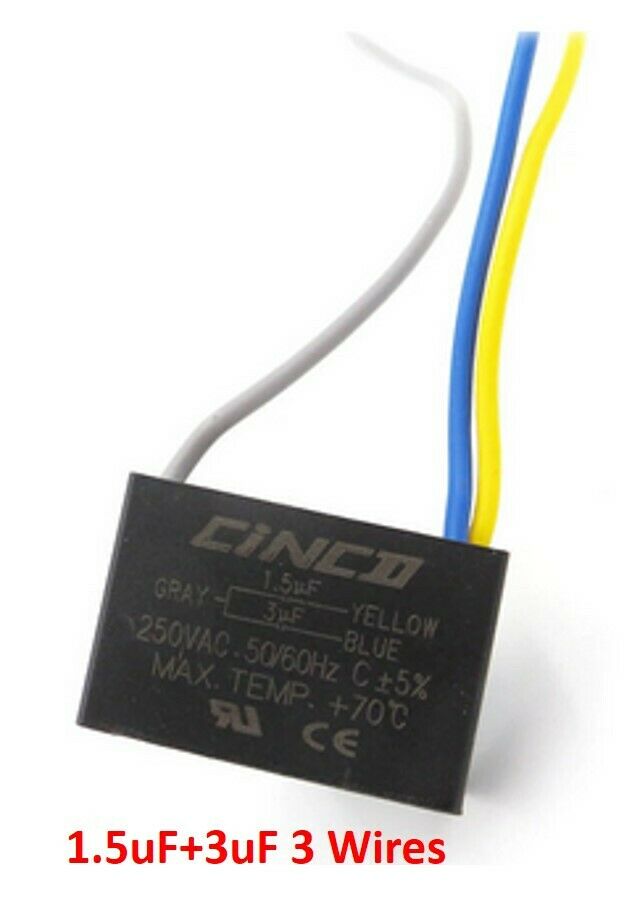

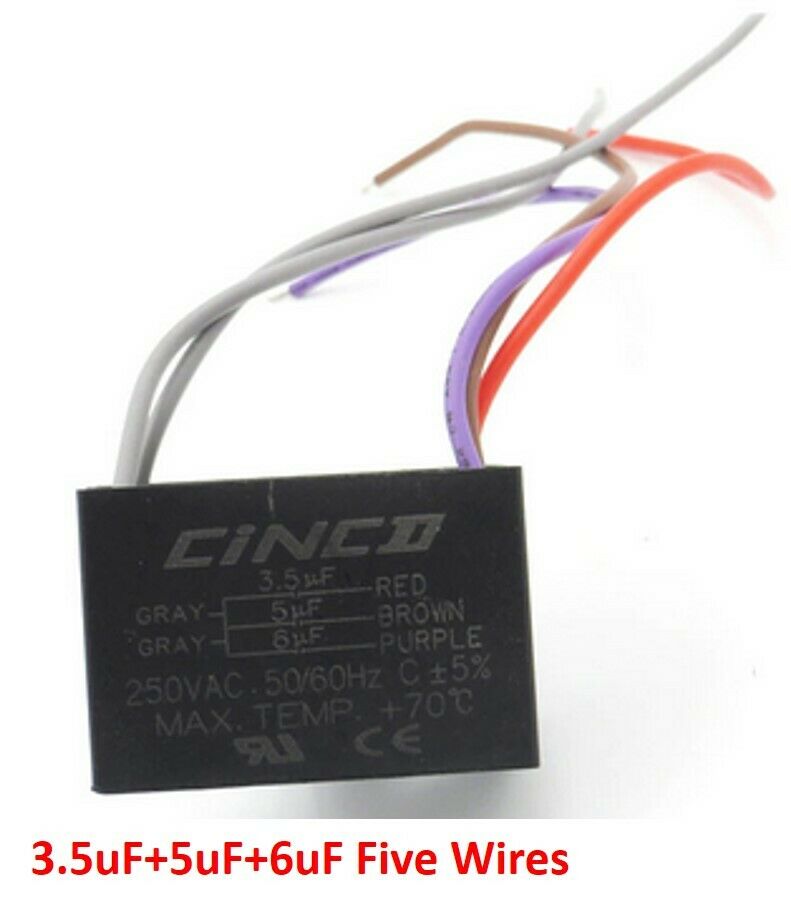

Package Includes: (select capacitance value from menu)
