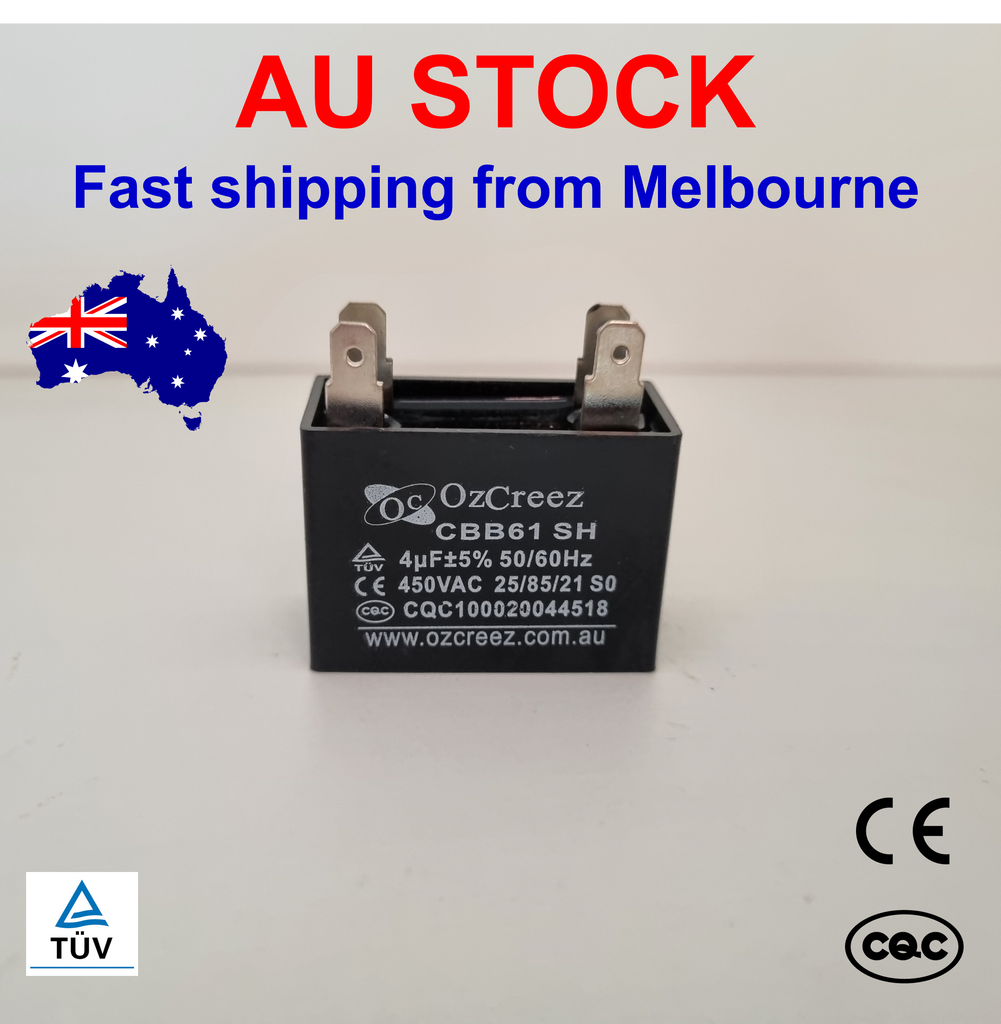

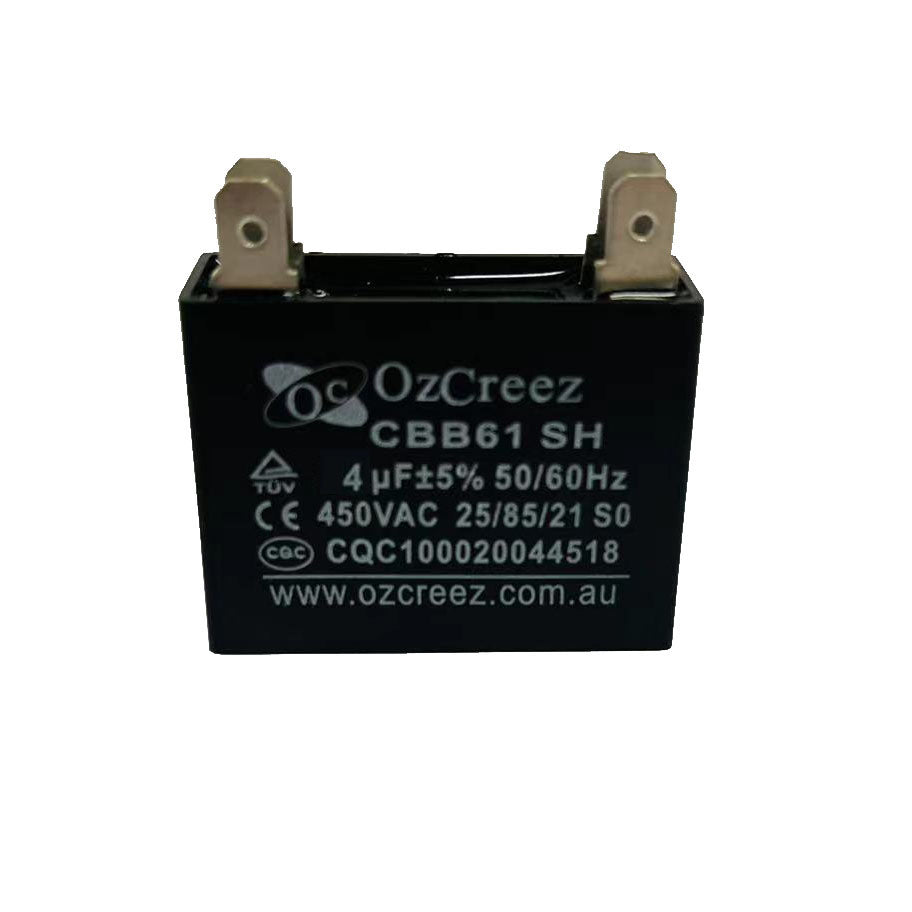

CBB61 4uF 4 Pin Fan Starting Capacitor Appliances Ceiling Fan Starting Capacitor

  • Sale
  • Regular price $10.95
FREE Shipping Australia wide for order over $20 unless otherwise stated in the product description, GST not collected



CBB61 4uF 450VAC 50/60Hz Fan Starting for Ceiling Fan, Exhaust Fan, Dynamo-motor, Hood Fan Capacitor

Australian Brand Compliant with many International Quality and Safety Standards

CBB61 AC motor run capacitor can be used in an electric motor under lower starting electric current. It helps to produce higher starting torque. It is commonly used in in single phase motor/fan.

Features:

  • Small volume, light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life.
  • Anti-explosion design, safe and reliable to use
  • Self-Healing
  • Small loss and high insulation resistance
  • Specially designed Self-healing (SH) model  and stable performance
  • Non-polarized, easy to connect with 2-wire, can be connected in any order.

Application:

  • Suitable for starting and running for mono- or single phase motors with power supply AC 50/60Hz Rated at 450V AC rated voltage

  • Used for range of applications: Ceiling Fan, Exhaust Fan, Dynamo-motor, Hood,  Washing Machine,  Home Appliance etc.

Specifications:

  • Model: CBB61
  • Capacity: 4uF
  • Type: Polypropylene Film Capacitor
  •  Material(External): Plastic
  •  Tolerance: ±5%
  • Rated Frequency: 50 Hz or 60 Hz, 50/60Hz
  • Rated Voltage: 450V AC
  • Cable Length: 10 cm (approx.)


Package Includes :

  • 1x 4uF Fan Capacitor

MUST READ BEFORE PLACING ORDER:

  • 1 or 2 pcs will be sent in envelop with stamps and it is not be trackable....
  • Usually it is delivered smoothly but in some cases Australia Post may ask to pay extra shipping..
  • You accept the risk of pay extra shipping by selecting free shipping option...

 For peace of mind, we strongly suggest selecting parcel shipping option.. Order will be trackable...

 Capacitor Size/Dimensions: Allow 1-3mm error due to manual measurement, Please make sure you do not mind before you bid.
