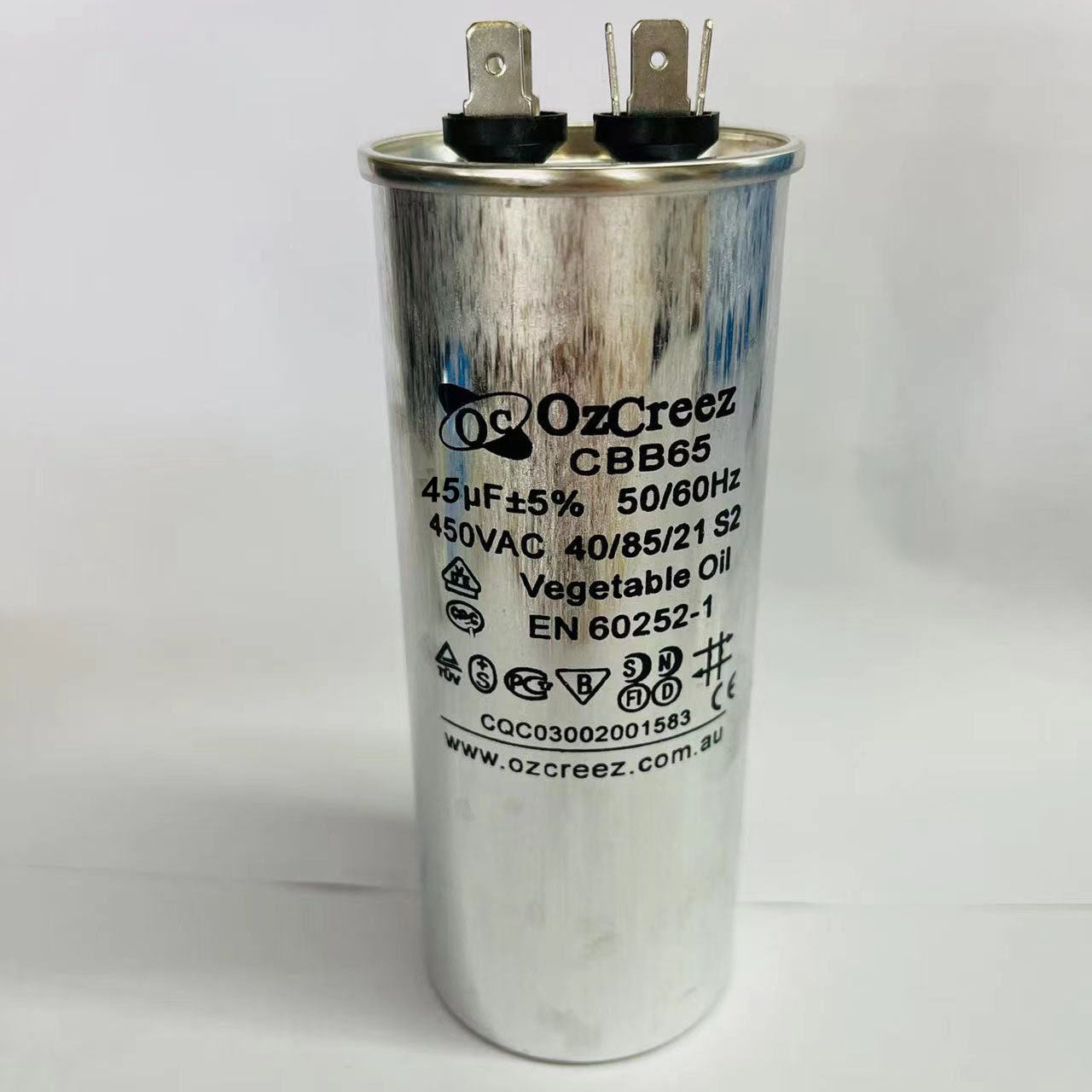

CBB65 CBB65A-1 450VAC 50 / 60 Hz 6uF / 8uF / 10uF / 15uF / 20uF/ 25uF / 30uF / 35uF/ 40uF / 45uF / 50uF / 60uF / 80uF / 100uF Air Conditioner Compressor Motor Run Capacitor
Australian Brand Compliant with many International Quality and Safety Standards
Features:
- Small volume, light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life.
- Heavy-duty aluminium casing with a steel cap. 10,000 AFC protected
- Anti-explosion design, safe and reliable to use
- Epoxy resin fully sealed structure
- Small loss and high insulation resistance
- Self-healing and stable performance
- Resistant to impulse/inrush current.
- Better heat dissipation effect and more stable performance under high temperature use
- Anti-explosion design, safe and reliable to use
- Self-healing performance
- Resistant to impulse current.
Applications:
Air Condition Motor Drive/Run Capacitor, Industrial equipment Motor Drive Capacitor, Refrigerator, Washing Machine, Electric fan, Oven Motor Run Capacitor
Specifications:
Model: CBB65 / CBB65A / CBB65A-1Brand: OzCreez Australia
International Quality and Safety Standard Compliant/Certifications: VDE, TUV, CQC, B mark, ASE/SEV, CE, SEMKO, FIMKO, NEMKO, DEMKO...
Type: Motor Drive/Run Capacitor/ Nonpolarity Electrolytic Capacitor
Capacity: 6uF / 8uF / 10uF / 15uF / 20uF/ 25uF / 30uF / 35uF/ 40uF / 45uF / 50uF / 60uF / 80uF / 100uF
Tolerance: ±5%
Voltage: 450V AC
Frequency: 50Hz / 60Hz
Temperature: -40℃ to + 85℃
Type: Motor Drive/Run Capacitor/ Nonpolarity Electrolytic Capacitor
Capacity: 6uF / 8uF / 10uF / 15uF / 20uF/ 25uF / 30uF / 35uF/ 40uF / 45uF / 50uF / 60uF / 80uF / 100uF
Tolerance: ±5%
Voltage: 450V AC
Frequency: 50Hz / 60Hz
Temperature: -40℃ to + 85℃
Material: Aluminum Foil
Unpolarized: no + and no - (alternating current)
Precaution:
This capacitor does not distinguish between positive and negative poles, and can be wired in any order.
Package List:

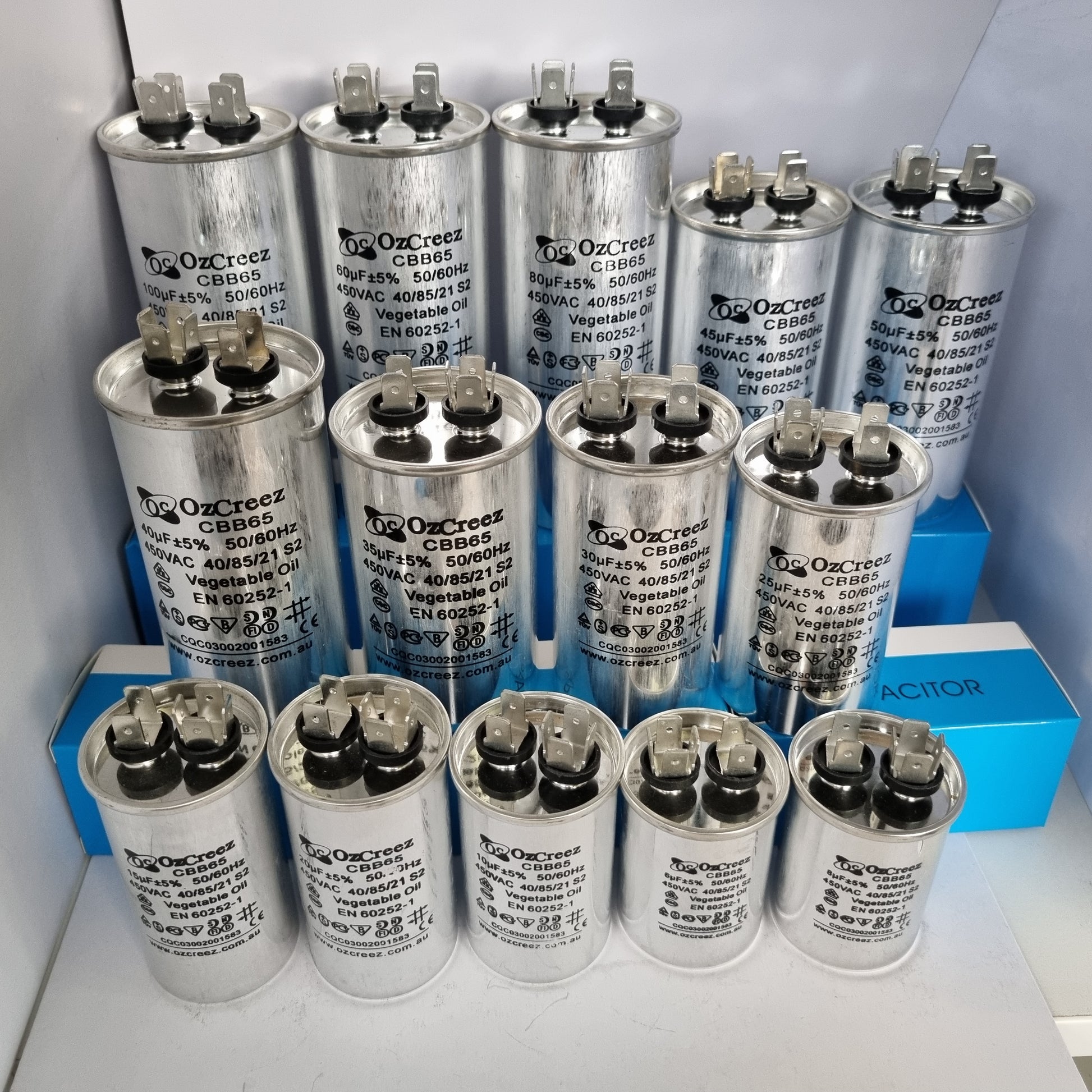

1x or 2x CBB65 Capacitor - (select quantity and rating from menu)
Capacitor Size/Dimensions Guide: allow ±1-2 mm tolerance
