Original CBB65 CBB65A-1 450VAC 50/60Hz 35uF Air Conditioner Compressor Motor Run Capacitor

Original CBB65 CBB65A-1 450VAC 50/60Hz 35uF Air Conditioner Compressor Motor Run Capacitor

  • Sale
  • $21.50
  • 8 available
FREE Shipping Australia wide for order over $20 unless otherwise stated in the product description, GST not collected

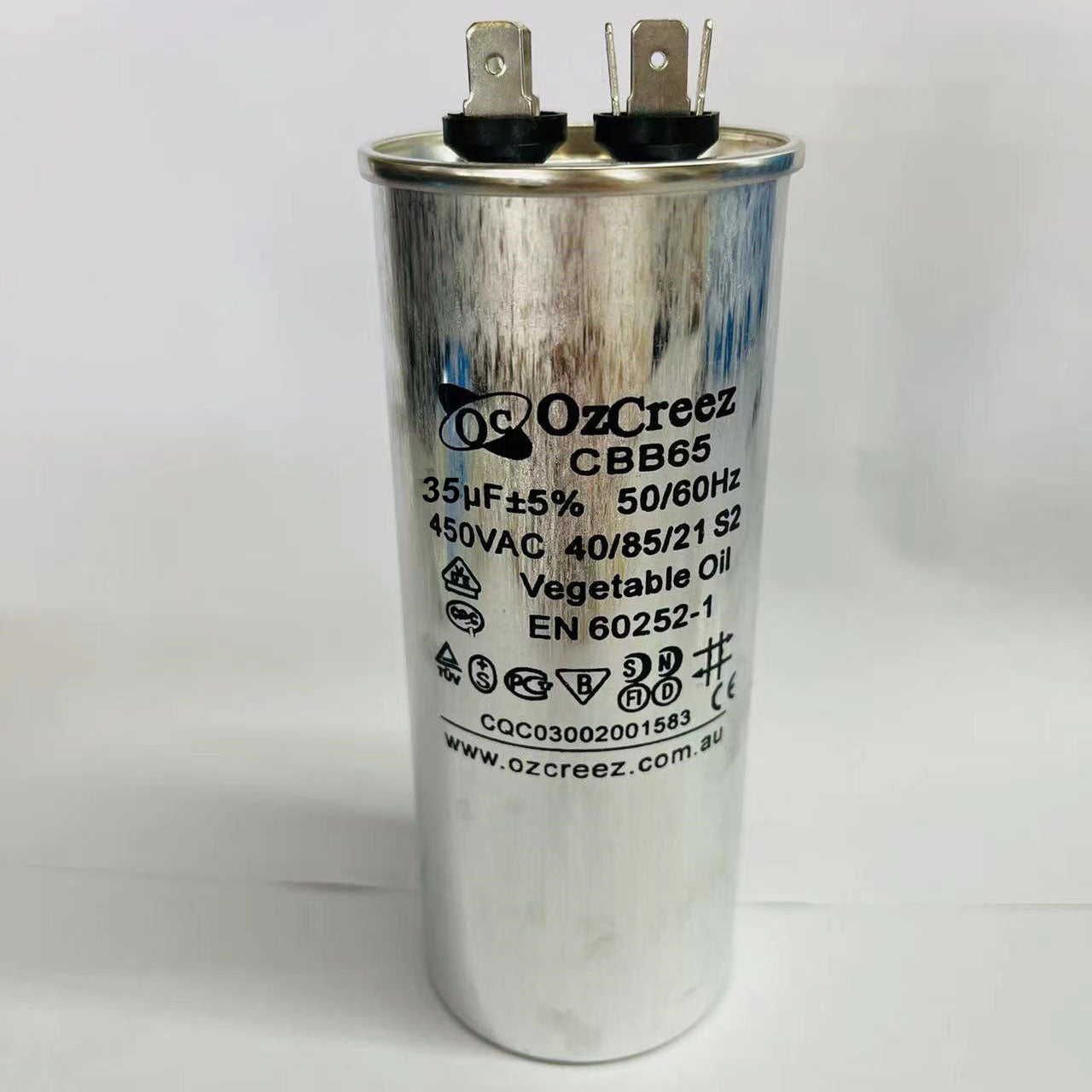

CBB65 CBB65A-1 450VAC  50 / 60 Hz 35uF Air Conditioner Compressor Motor Run Capacitor

Australian Brand Compliant with many International Quality and Safety Standards

Features:

  • Small volume, light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life.
  • Heavy-duty aluminium casing with a steel cap. 10,000 AFC protected
  • Anti-explosion design, safe and reliable to use
  • Epoxy resin fully sealed structure
  • Small loss and high insulation resistance
  • Self-healing and stable performance
  • Resistant to impulse/inrush current.
  • Better heat dissipation effect and more stable performance under high temperature use
  • Anti-explosion design, safe and reliable to use
  • Self-healing performance
  • Resistant to impulse current.

Applications:

Air Condition Motor Drive/Run Capacitor, Industrial equipment Motor Drive Capacitor, Refrigerator, Washing Machine, Electric fan, Oven Motor Run Capacitor

Specifications:

Model: CBB65 / CBB65A / CBB65A-1
Brand: OzCreez Australia
International Quality and Safety Standard Compliant/Certifications: VDE, TUV, CQC,  B mark, ASE/SEV, CE, SEMKO, FIMKO, NEMKO, DEMKO...
Type: Motor Drive/Run Capacitor/ Nonpolarity Electrolytic Capacitor
Capacity: 35uF
Tolerance: ±5%
Voltage: 450V AC
Frequency: 50Hz / 60Hz
Temperature: -40℃ to + 85℃
Material: Aluminum Foil
Unpolarized: no + and no - (alternating current)

Precaution:

This capacitor does not distinguish between positive and negative poles, and can be wired in any order.

Package List:

1x or 2x CBB65 Capacitor - (select quantity and rating from menu)



Capacitor Size/Dimensions Guide: allow ±1-2 mm tolerance
